DZ-D100


Using the knowledge of top doctors and Casio's unique camera technology, Dermatology camera DZ-D100, an epoch-making medical device born from the voice of clinical practitioners.


Various functions to improve medical care efficiency

Equipped with various functions for efficient medical treatment.

・Dual purpose : Ordinary & close-up photography
・Single shutter : Polarized, non-polarized, and UV modes
・Guide : Scale display
・Record an entire area : Wide area shots
・Low distortion : Special lens
・Bright and clear : LED lights
・Easy to view : Tilt display
・External monitor : HDMI connector
・Observe movement : Movie shooting


Dermatology camera DZ-D100 is now even easier to use

Convenient options that make observation even easier are available
・Small-diameter & 3D adapter set / DAS-100M
・Microscope adapter / DMS-100M
・Lithium ion battery / DNP-100M
・Protective film / DFP-100M


More efficient image management and observation with PC

Dermatology camera DZ-D100 photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer application software. Magnifying images is made simple.


Achieving convenience and ease of operation

Compact and lightweight design makes it easy to hold, achieved a grip shape and a highly practical design. Simple button layout focusing on frequently used operations.


Basic information


Product name                                Dermatology camera / DZ-D100

Bundled accessories                    Lithium ion battery (DNP-100M), AC adapter for charging (AD-M50300A),
                                                           Lens cap, Lens removable tool, Quick start guide (with warranty)

Included

Detailed function


Dual purpose : Ordinary & Close-up photography

Both ordinary and close-up shots can be taken without switching lenses. From photographs of the entire affected area to enlarged photographs of the lesion area, you can take beautiful and speedy photographs within the limited consultation time.
* Ordinary and close-up videos can be also taken.


Polarized, non-polarized, and UV modes with single shutter

A single click of the shutter can yield polarized, non-polarized, and UV photos. No switching of filter is required, which saves time.
* UV photos snapped at 405nm wavelength.
* UV mode set with a single ON/OFF switch.



This mode blocks light emission from the surface of the skin, making it easier to observe pigment distribution beneath the skin's surface. This mode is good for observing the condition of the skin's surface. With UV photos, the edge of blemishes and spots are reveled in sharp definition.

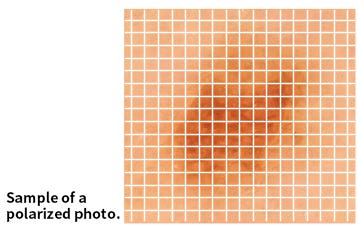

Guide : Scale display

This function superposes a scale over a close-up image. Immediately showing the size of the affected area. Touch the scale to rotate it in the direction needed to indicate size as a guide.

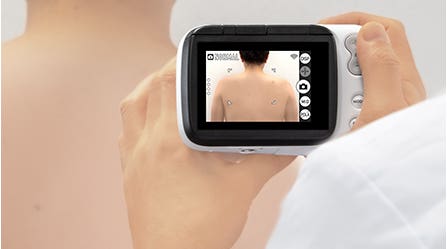

Record an entire area
Wide area shots

The user can photograph the entire affected area, such as the back, which is useful in observing the course of a lesion.

Low distortion : Special lens

Images are clear all the way to the edges, making it possible to accurately see the shape of the affected area ; and their high-resolution captures microstructures in the affected are with fine precision.

Bright and clear : LED light

When taking an ordinary photo, uniform illumination from the ring light outside the lens enables faithful reproduction of colour tone. In close-up mode, illumination from inside the lens yields a stable clear image quality.

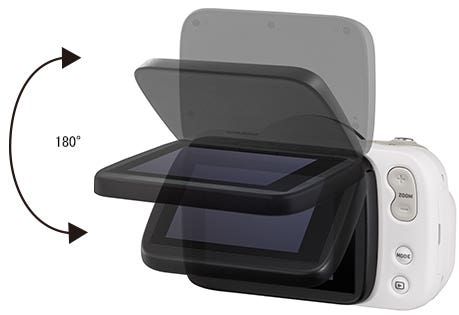

Easy to view : Tilt LCD monitor

The LCD monitor can be tilted to different angles for easy visibility under all conditions

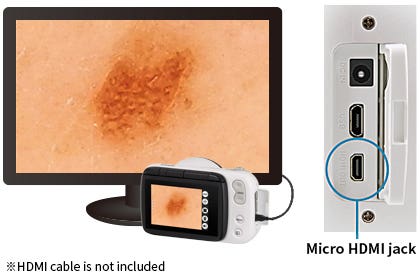

External monitor
HDMI connector

The camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterwards. This is useful for providing explanations to patients or making presentations at conference.

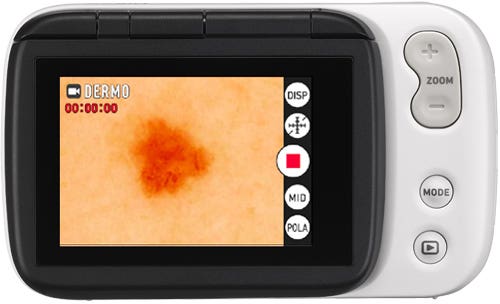

Video shooting when the lesion is moved.

Can record the movement of the "Wobbler test"

Optional accessories

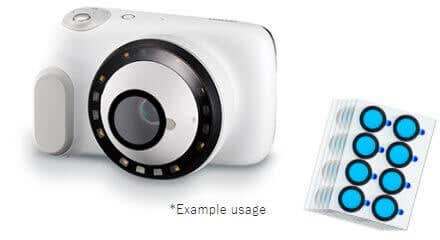

Protective film
DFP-100M (120 pieces included)

The protective film discs are applied directly onto the camera lens to protect it from scratches and dirt. Package includes 15 sheets which each contain 8 discs. Expires 6 months after opening. Single use only.

How to use

Remove the protective film from the backing,
and apply onto the camera lens.

When ready for use, peel off the blue sheet on the surface of the protective film.


Small-diameter & 3D adapter set
DAS-100M

Small-diameter adapter
When photographing lesions in locations that are difficult to focus on, such as between fingers or inside an ear, fit the small-diameter adapter to the camera to take the shot. The angle of view is 6mm.



3D adapter
This adapter holds the camera lens about 2mm away from the surface of the skin so it can be photographed without the lens pressing against a swollen lesion. The 3D adapter also facilitates the use of DERMO AIF (All In Focus) mode.

DERMO AIF(All In Focus):

In this mode, the camera shoots multiple images with differing focal points and merges them into a single image that is in focus over a wide range. This is a good mode for photographing lesions that have a rough surface.

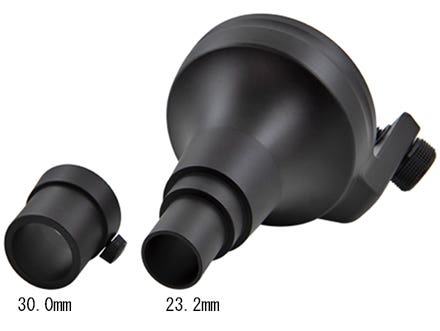

Microscope adapter
DMS-100M

This adapter makes it possible to mount Dermatology camera DZ-D100 to the eyepiece of a microscope. It can be mounted to eyepieces with an inner diameter of either 23.2mm or 30.0mm. The user can take pathological images observed through a microscope and can also use an HDMI cable to display images on an external monitor.




D'z IMAGE Viewer (Image management software)


More efficient image management and observation with PC

Dermatology camera DZ-D100 photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer application software. Magnifying and comparing images is made simple.


Data transfer to PC


Data transfer method

Automatic sorting by patient ID

D'z IMAGE Viewer automatically sorts images tagged with patient IDs.

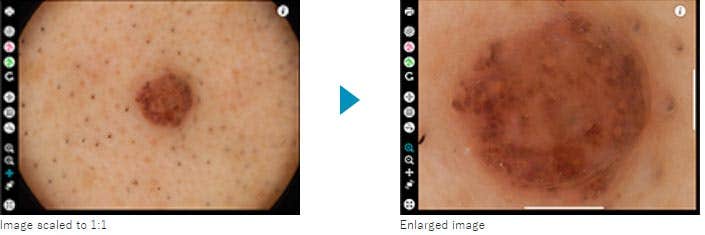

Getting a detailed look at images


Displaying images

Users can inspect images from Dermatology camera DZ-D100 in great detail.

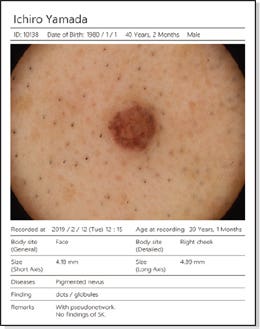

Printing function

Lesion information attached to an image can be printed for referrals to other medical institutions or requesting opinions from other doctors.

Tagging images

Images can be individually tagged with such information as “name of disease,” “location,” “size,” etc.

Searching images

The desired images can be searched by “name of disease,” “name of patient,” “age,” “gender” and other criteria.

Outputting images

Image data can be exported with patient ID information deleted, enabling safe use for papers, etc.


Getting a detailed look at images





Designed with the comments of doctors in mind

The grip features an easy-to-hold shape, and the round shape of the camera is soothing to jittery patients, while the white colour and compact body create a clean appearance. These design features put high priority on the type of usability requested by doctors.

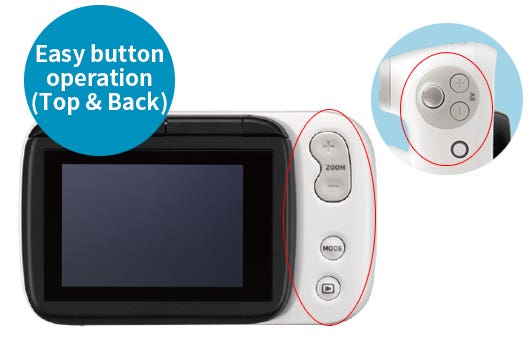

Easy to operate

Frequently used operations are assigned to easily located buttons.
With a single touch of a button, the user can switch between close-up mode, microscope mode, and other modes that make for convenient dermal observations.


Main specifications


Model DZ-D100
Valid pixels 5184×3888 Approx. 20.16 megapixels
Imaging element   1/2.3-inch CMOS (back-illuminated type)
  Total pixels 5352×3950 Approx. 21.14 megapixels
Imaging file format Still images JPEG (Exit Ver 2.3), DCF2.0 compliant, DPOF non-compliant
Recorded pixels:20M(5184×3888)/12M(3968×2976)/5M(2560×1920)
Video MOV format, H264/AVC-compliant, IMA-ADPCM audio (monaural)
Recorded pixels: 1600×1200 (UXGA), 30 fps
Recording Media SD Memory Card, SDHC Memory Card, SDXC Memory Card
Recoding capacity Still images Recording media 16MB 1,860 shots
Video Maximum video file size Max. 1.4GB per video (10-min. video)
Recording media 16GB Approx. 1 hr. 50 mins.
Lens Construction 9 elements in 6 groups
F-number F3.33
Focal distance f=7.67
35mm Film Equivalent 53.5mm (single-focus lens with filter switching unit)
Zoom Digital zoom 8x
Zoom resulution:0.1x
ISO Sensitivity (Standard Output Sensitivity) NORMAL mode: Auto
Close-up (DERMO) photography: Fixed
Data transfer method Wi-Fi / micro USB cable / SD memory card
Communication function Compliant standard: IEEE 802.11b/g/n, range of frequencies used:
1‒13 ch, encryption method: WPA2
Image monitor 3.0 TFT color LCD, 720×480 pixels, 1036800 dots (RGB)
Capacitance touch panel
Power supply Lithium-ion battery (DNP-100M) × 1
Battery life Number of shots Approx. 175 shots
Actual video recording time Approx. 45 mins. (during continuous recording)
Size 127.5 × 76.0 × 86.1 mm (5.0" × 3.0" × 3.4") (W × H × D)
Weight Approx. 395g (13.9oz) (incl. battery & memory card),
approx. 350g (12.3oz) (w/o battery & memory card)
Bundled accessories Lithium-ion battery (DNP-100M),
AC adapter for charging, lens cap, lens removal tool, Quick Start Guide
